ML-R 8x8 bicolor display, CAN Bus,UART, 4 switches (mrm-8x8a)

Ukratko

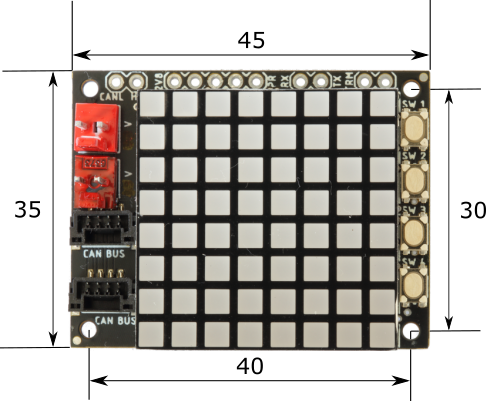

Polje 8x8 LEDova u 2 boje (crvena i zelena). Uključivanjem obadvije diode dobiva se 3. boja (narančasta). 4 tipkala. CAN Bus. Napajanje 5 V.

Cijena: 14,84 €, PDV uklj Kupi

Osobine

Sučelje CAN Bus. UART opcija.
Rezolucija 8x8 u 3 boje.
Dodatna funkcionalnost 4 tipkala. LED indikator rada.
Zaštita Zaštita od obrnutog napona napajanja i elektrostatskog elektriciteta.
Plug and play. Da. Više detalja ovdje.
Stardardizirani format. Da. Više detalja ovdje.
Ulazni napon. 5 V.
Status LED. Da. Više detalja ovdje.
Firmware dogradiv. Da. Više podataka ovdje.
×

Spajanje

If You intend to get power supply from MRMS components, You will be able take a ready-made cable, like ML-R Cable KK254-KK254 10 cm (mrm-kk2.54-2.54-10).

If You do not want to use MRMS cables, standard Dupont 0.1" plugs will fit into Molex KK 254 connectors. If You want to make perfectly matching custom cables, You can buy Connector set 0xKK396 + 2xKK254 (mrm-con0-2).

You have a similar choice for CAN Bus cables: using a standard MRMS, like MRMS CAN Bus cable 10 cm (mrm-jst-can10), for connection to some other MRMS board, or to make a custom cable, to be connected to some other board. The latter choice can be implemented by using Adapter cable CAN Bus - 4 x Dupont (mrm-can-dup20). You will be able to connect MRMS CAN Bus to standard Dupont 0.1" pins.

Softver

Želite li koristiti CAN Bus s Arduinom, posjetite ovu stranicu s instalacijskom procedurom za MRMS ESP32: Arduino, IMU, eFuse, BT, WiFi, CAN Bus (mrm-esp32). Više o CAN Bus postavkama pročitajte ovdje.
